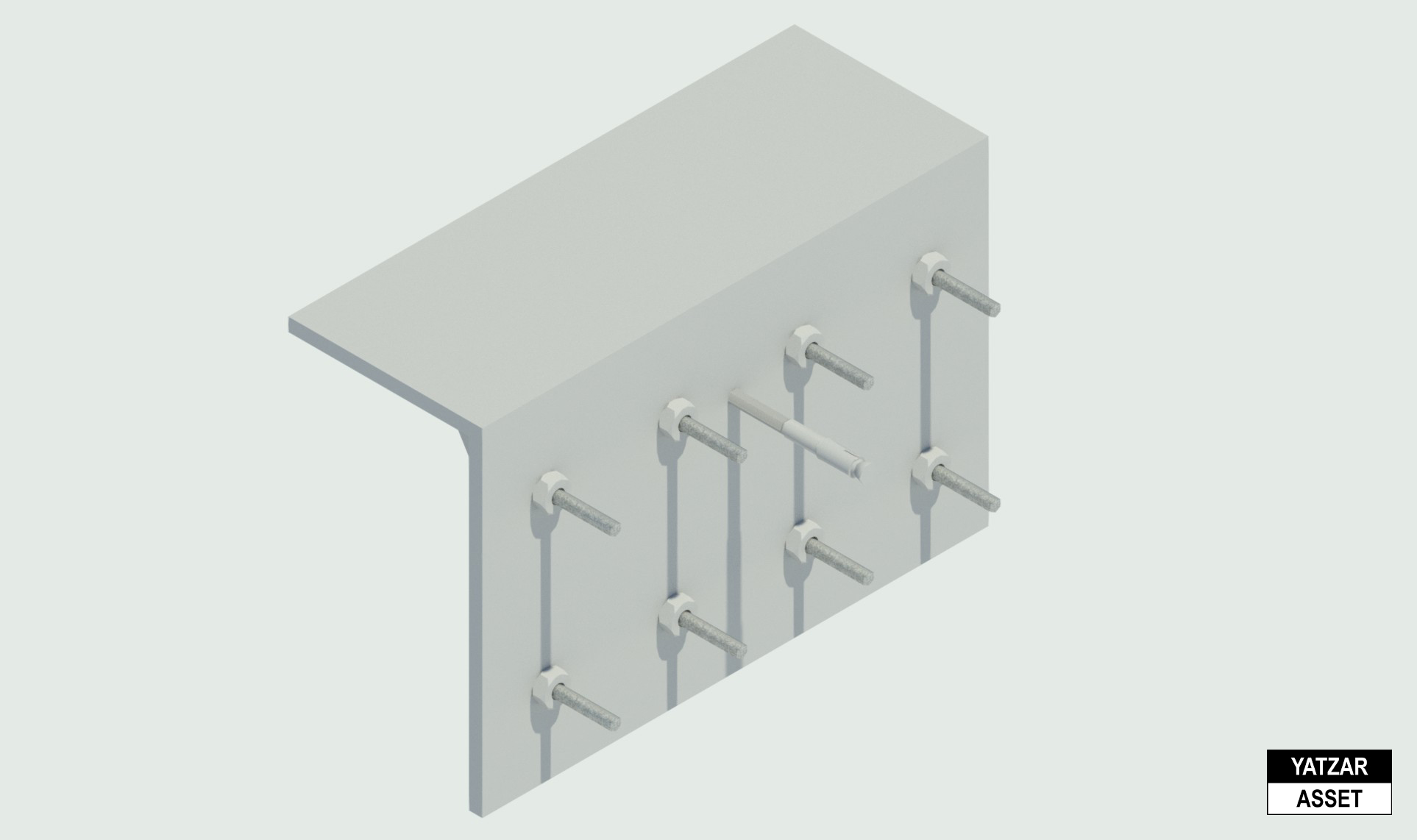

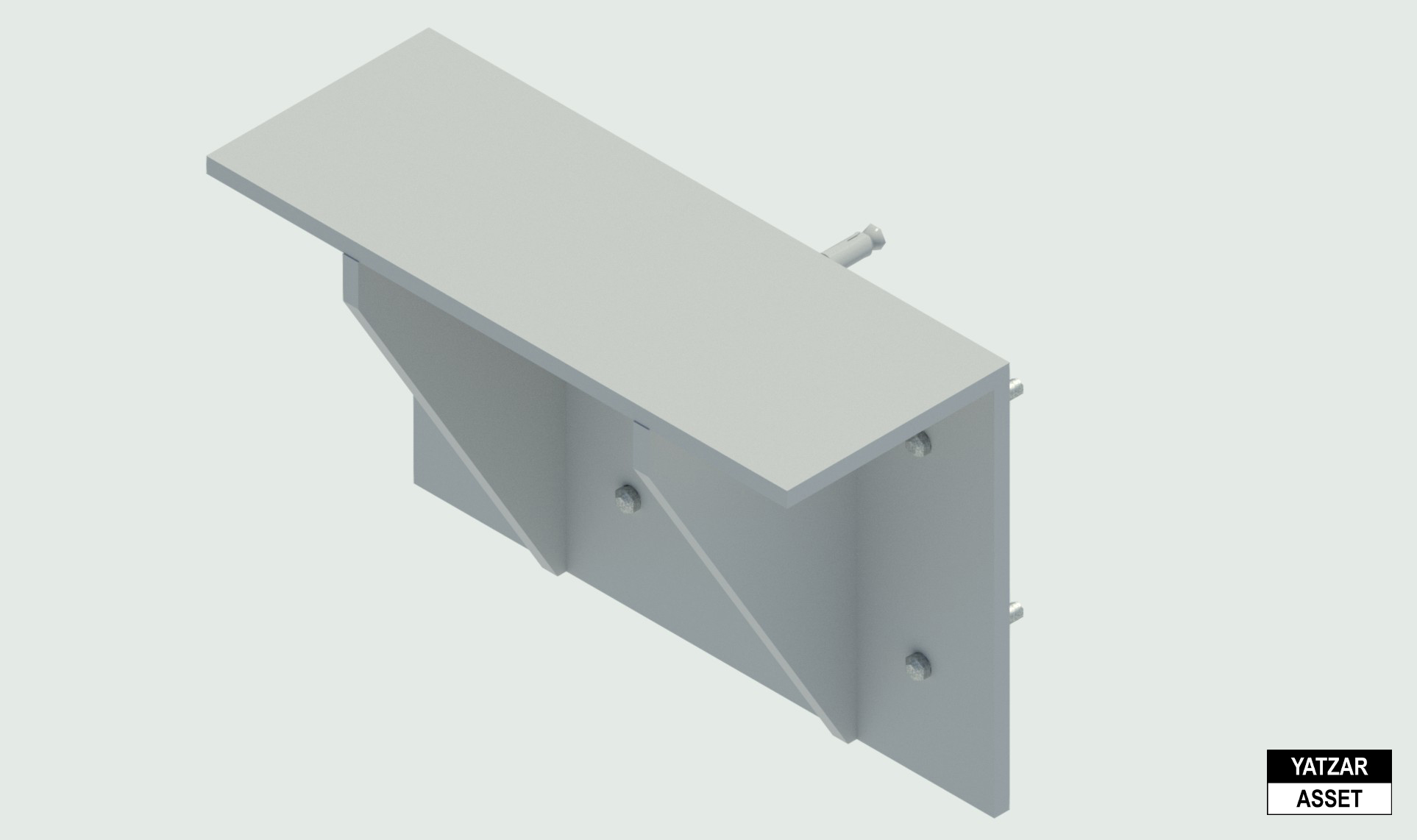

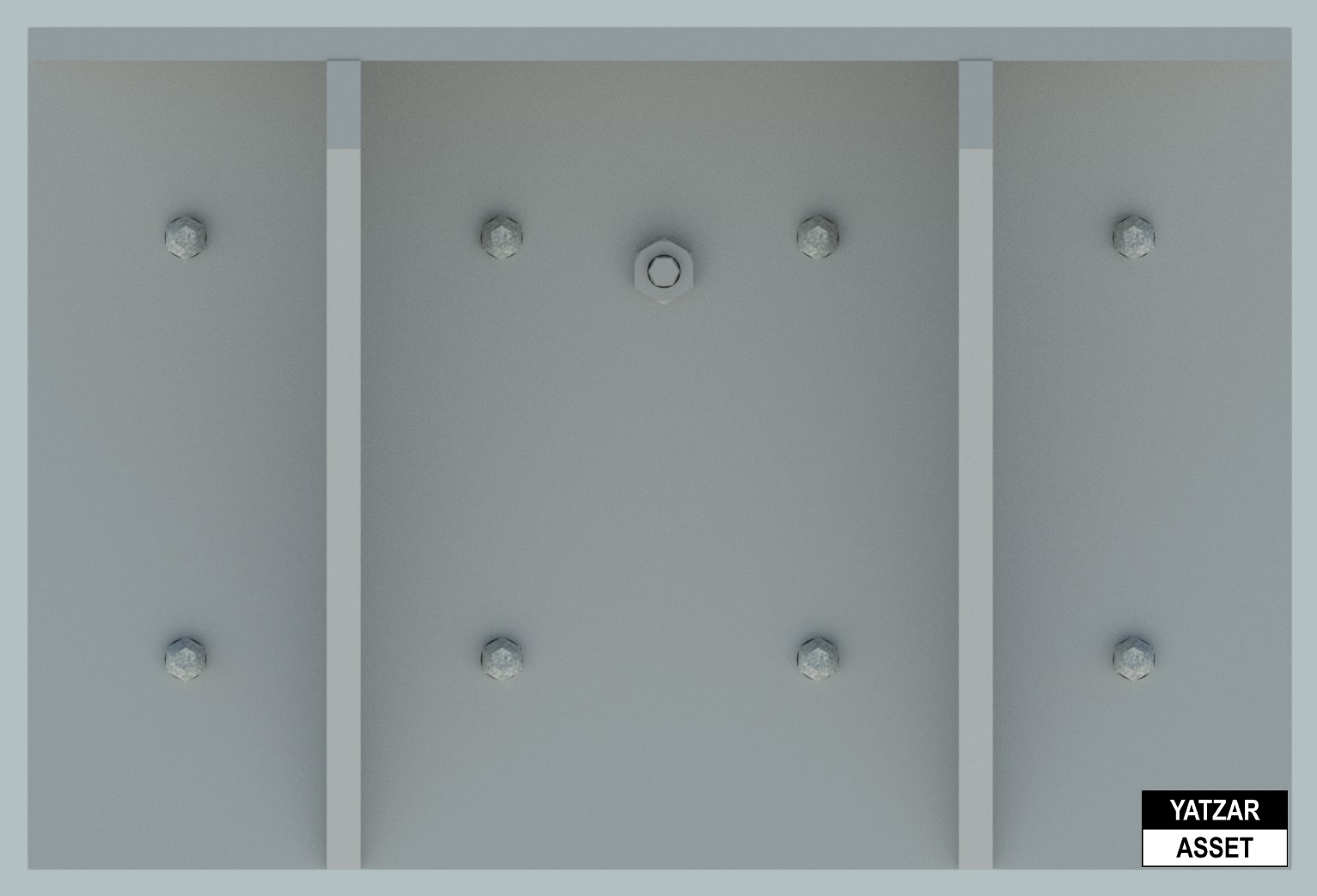

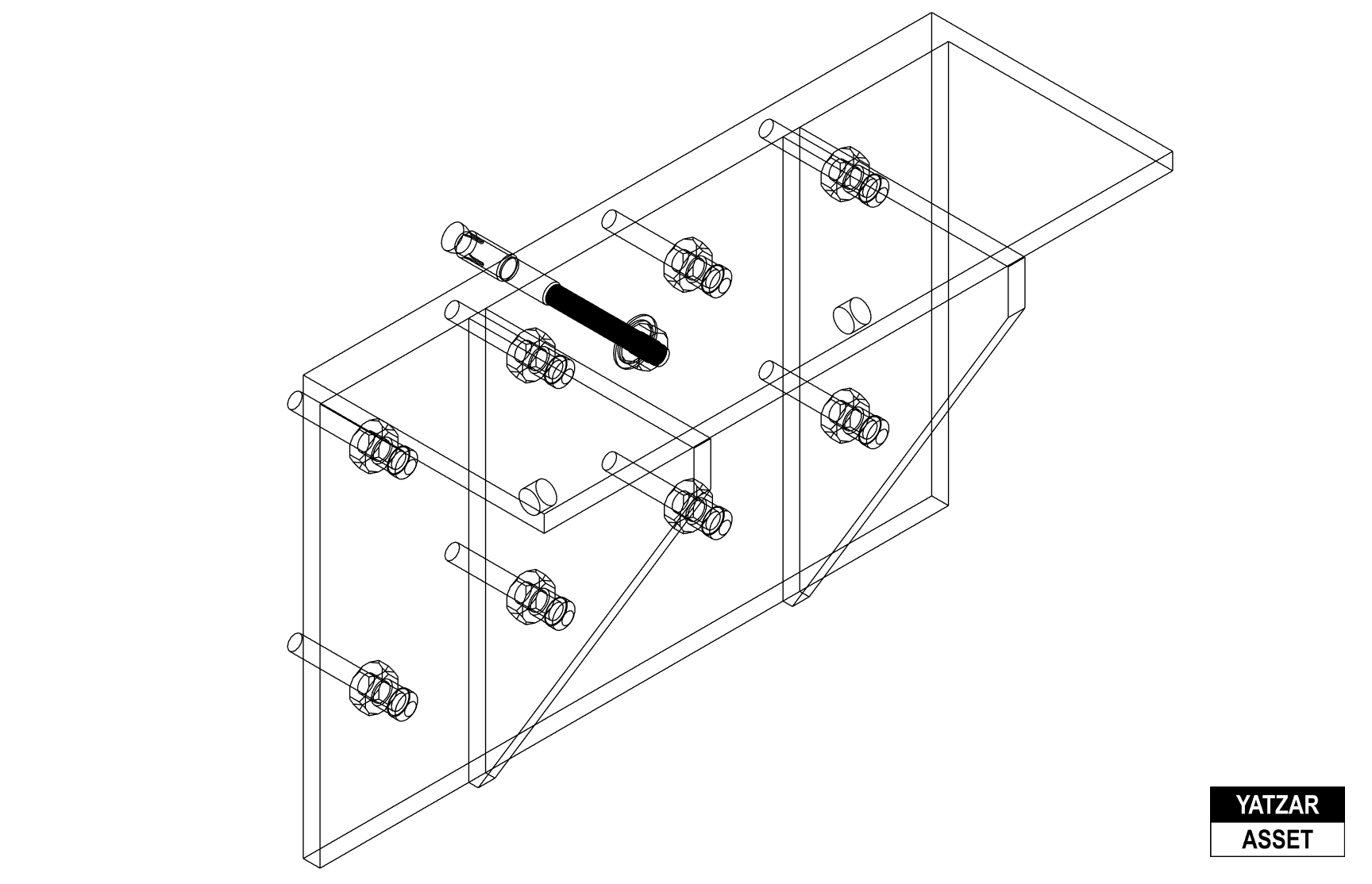

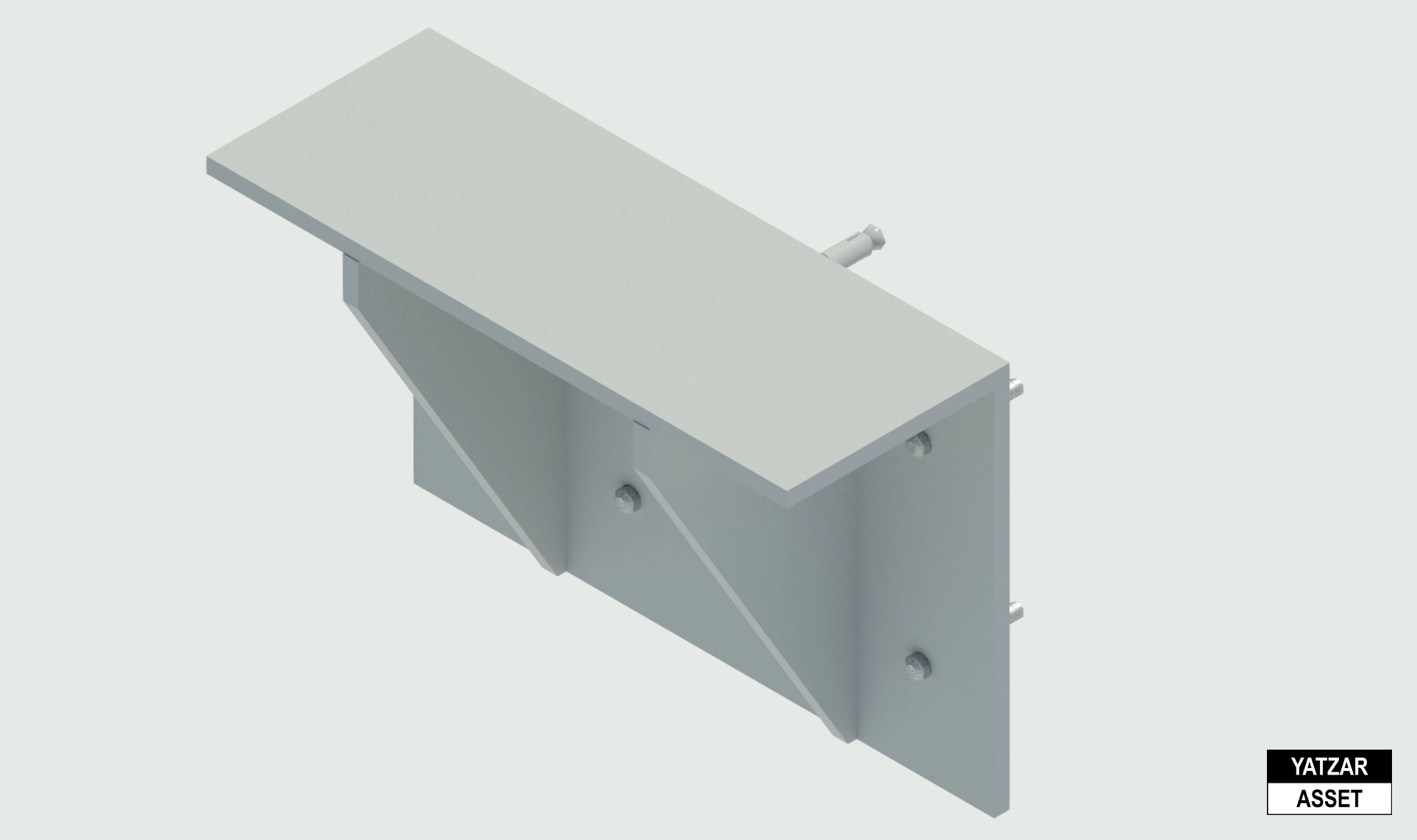

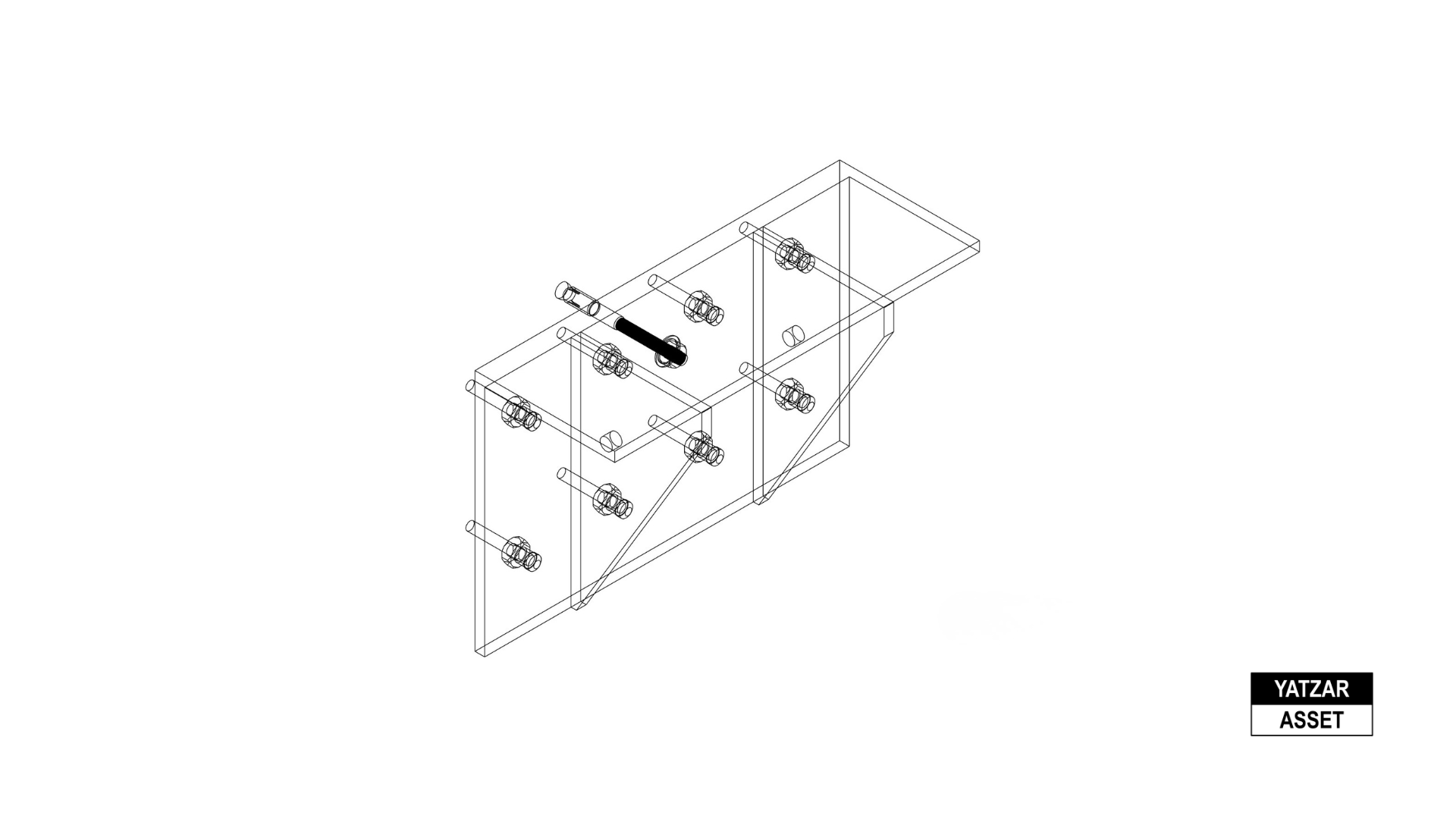

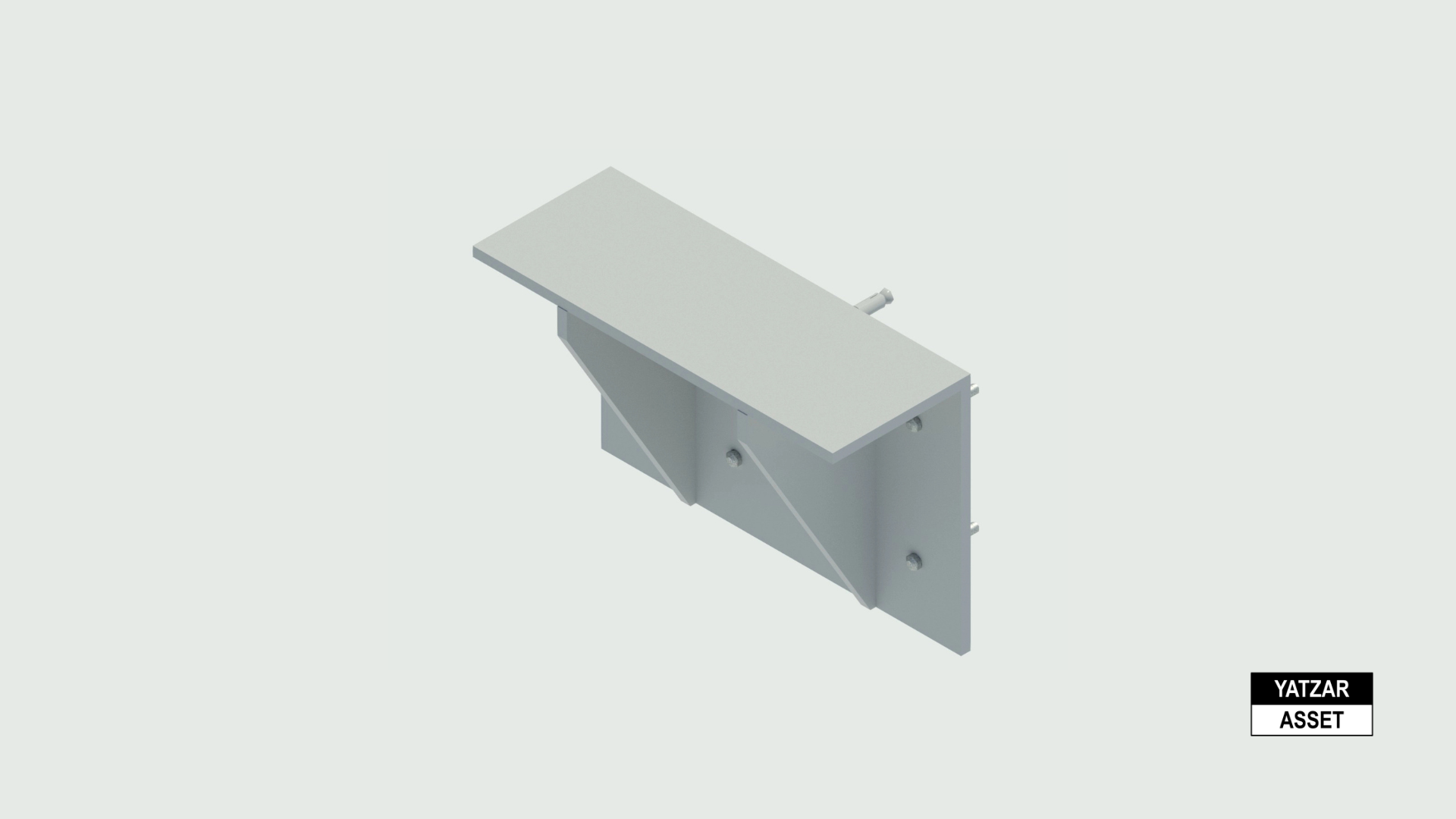

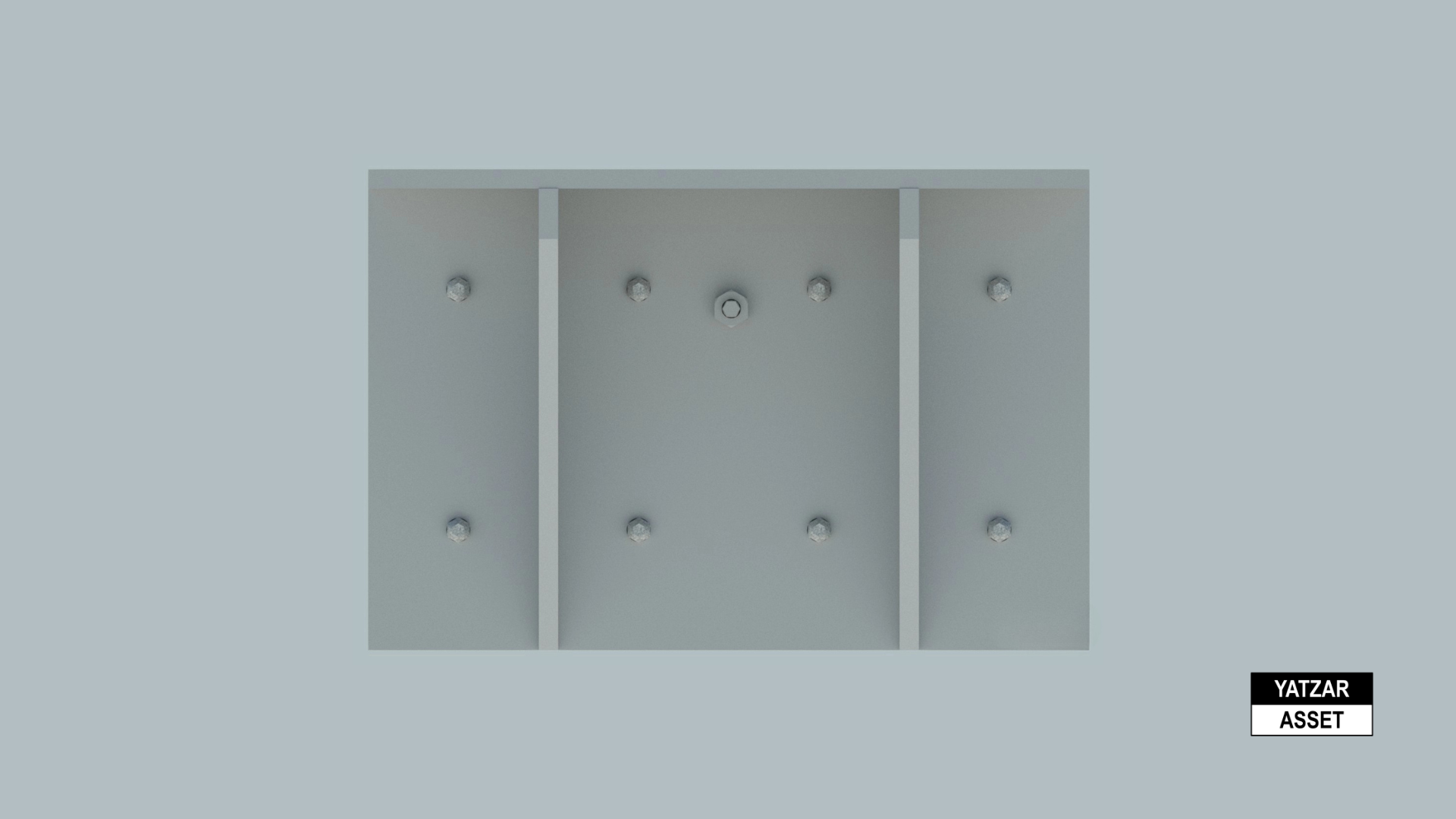

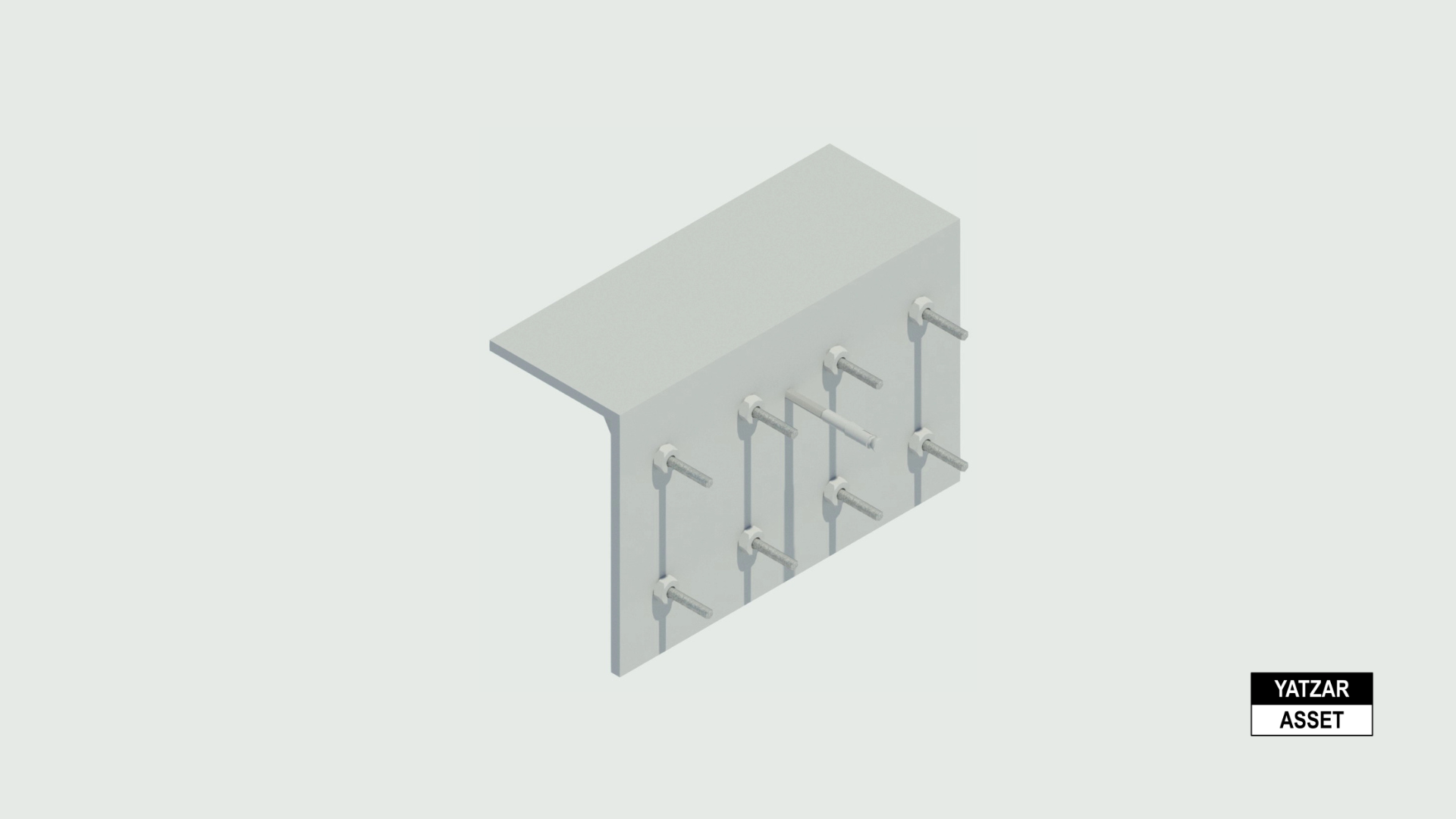

Bridge Barrier Mounting Bracket 16mm
The Bridge Barrier Mounting Bracket 16mm is a robust steel connector used to secure safety barriers to bridge structures. It provides reliable strength and stability, ensuring a secure interface between guardrails and bridge decks.
Total file size:
1.18 MB |
Number of files:1
The asset includes a Revit 2025 parametric family of the Bridge Barrier Mounting Bracket 16mm. It incorporates instance and type parameters for size, material, and identification data, enabling precise placement and scheduling in BIM models.
The asset includes a Revit 2025 parametric family of the Bridge Barrier Mounting Bracket 16mm. It incorporates instance and type parameters for size, material, and identification data, enabling precise placement and scheduling in BIM models.
The Bridge Barrier Mounting Bracket 16mm is designed to provide a secure attachment between guardrail systems and bridge structures, ensuring stability under impact conditions. Manufactured from galvanised steel, it offers durability and ease of installation for bridge approaches and elevated roadway applications. The digital asset is provided as a Revit 2025 parametric family, with parameters defining geometry, material, and identity data, supporting accurate application and integration within project environments.
Keywords
- Original
V0 （current）
Released: September 03, 2025
