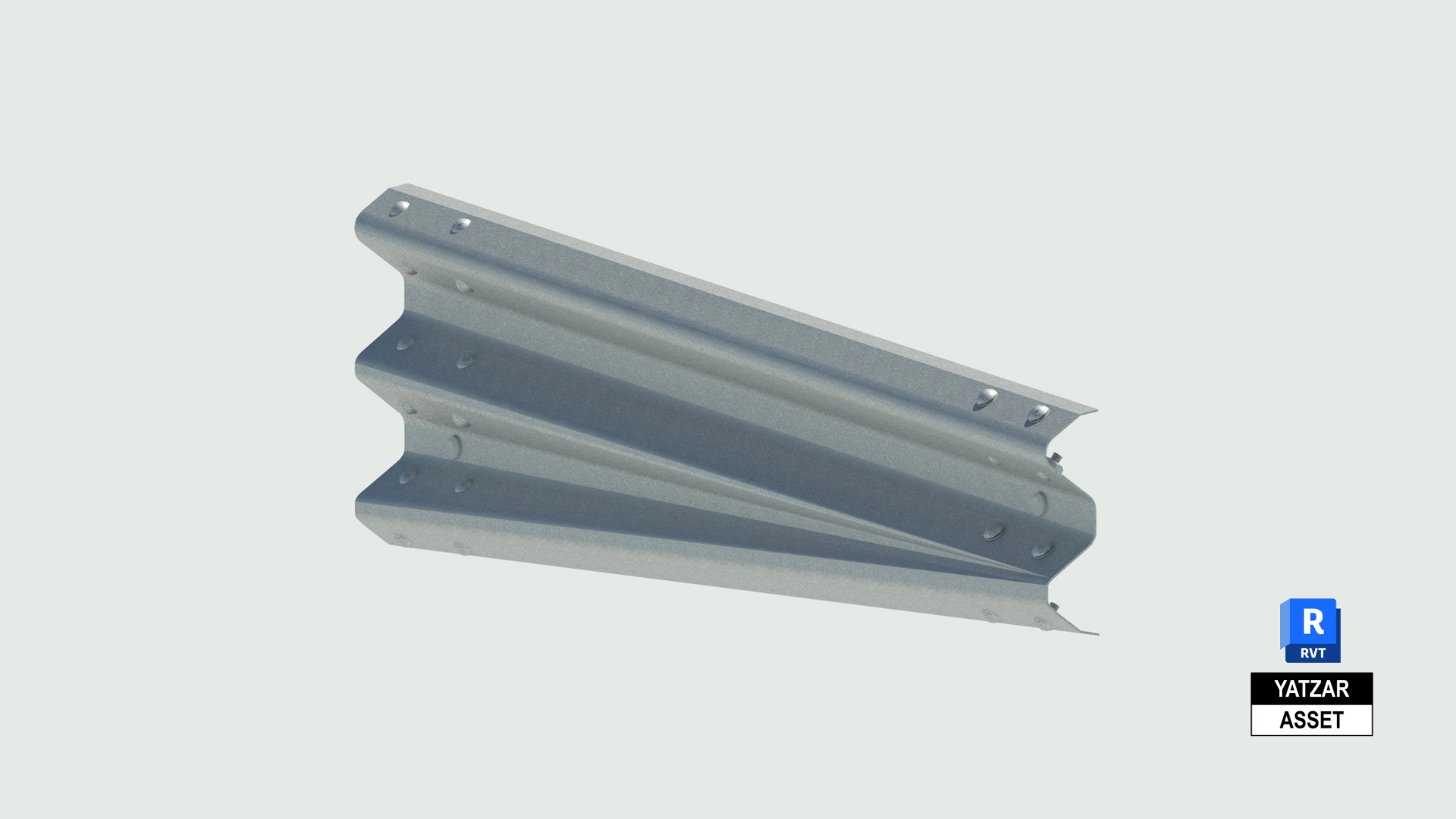

Asymmetric Transition 1905mm RHS Thrie-Beam to W-Beam

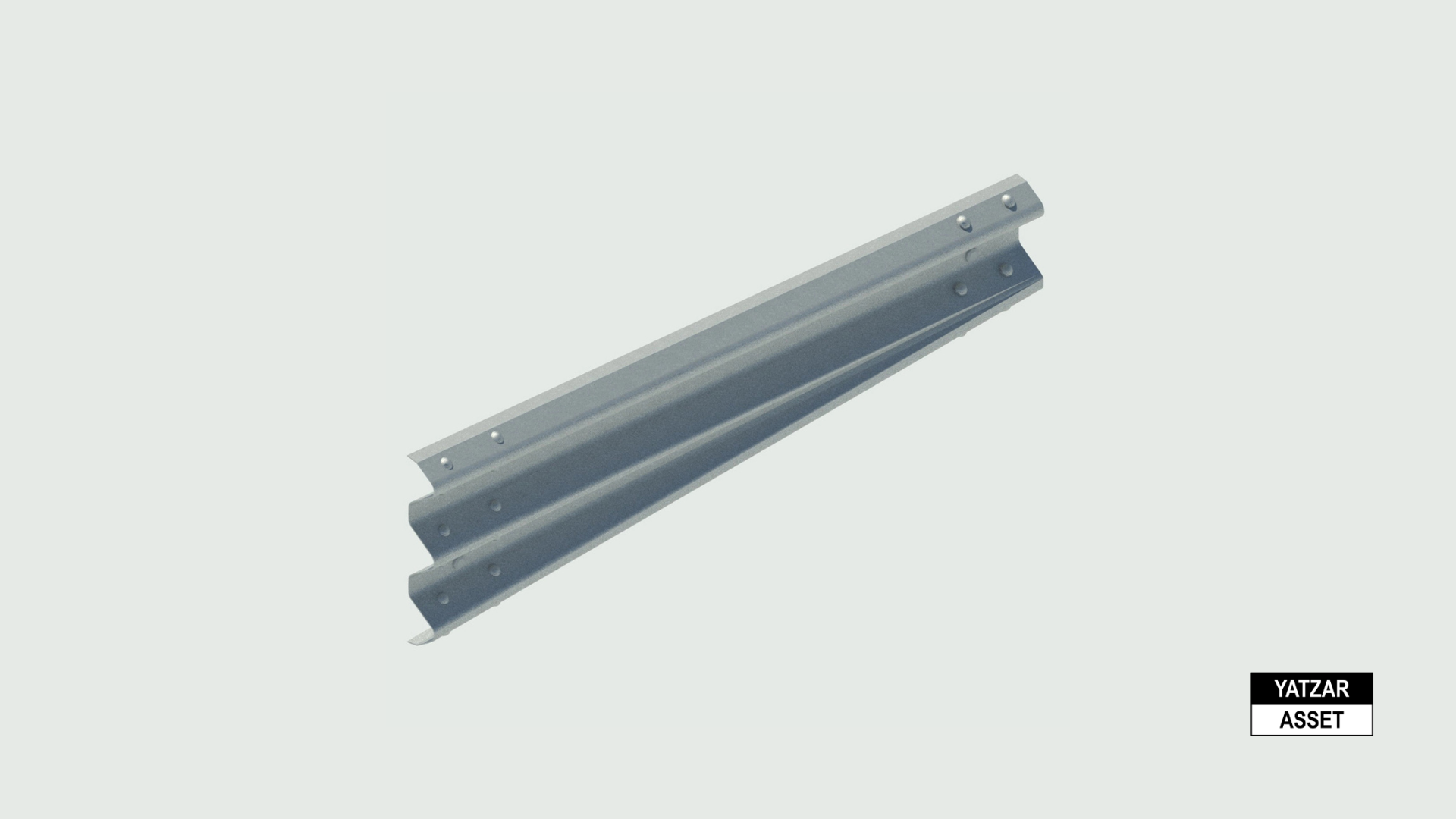

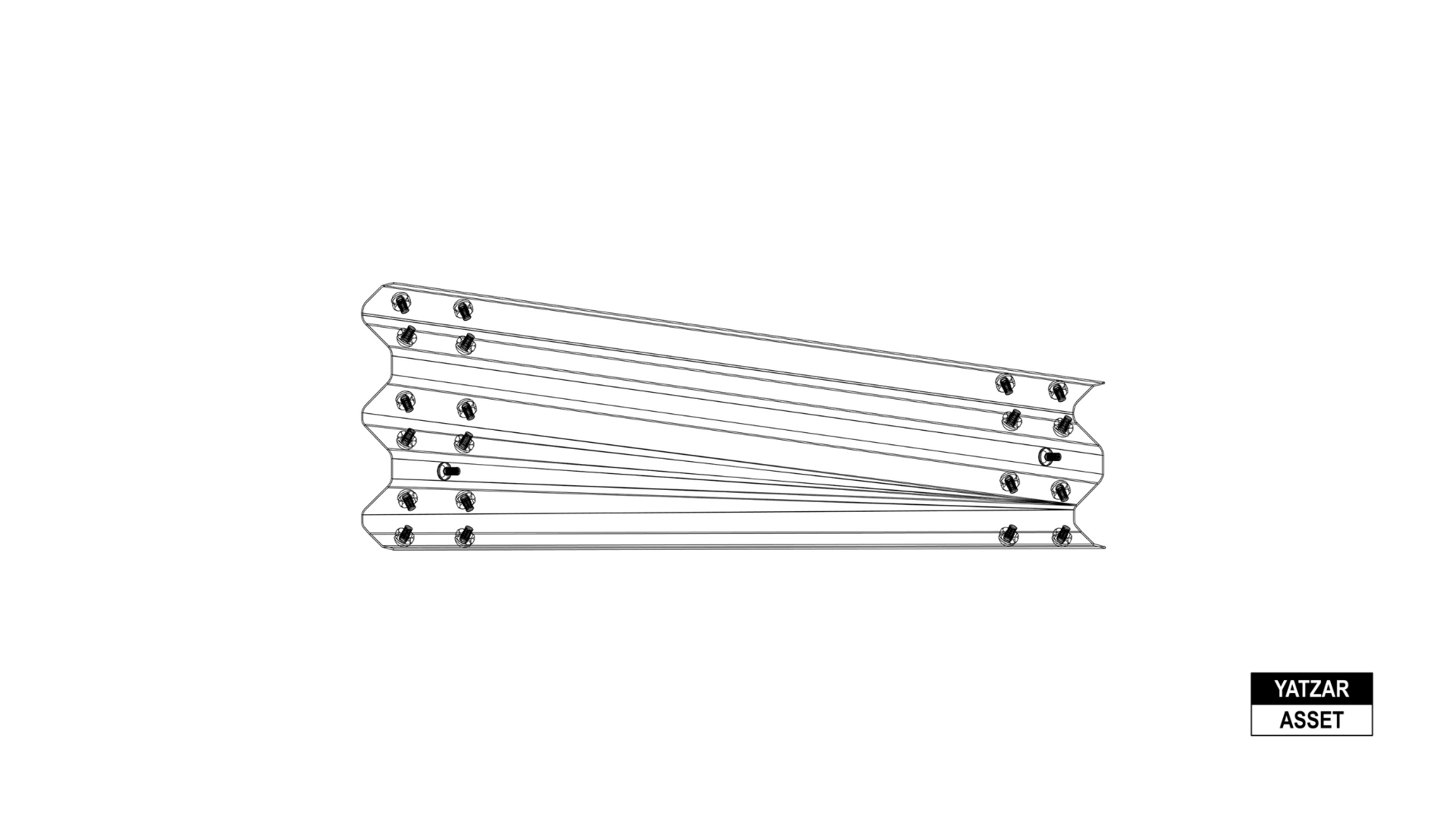

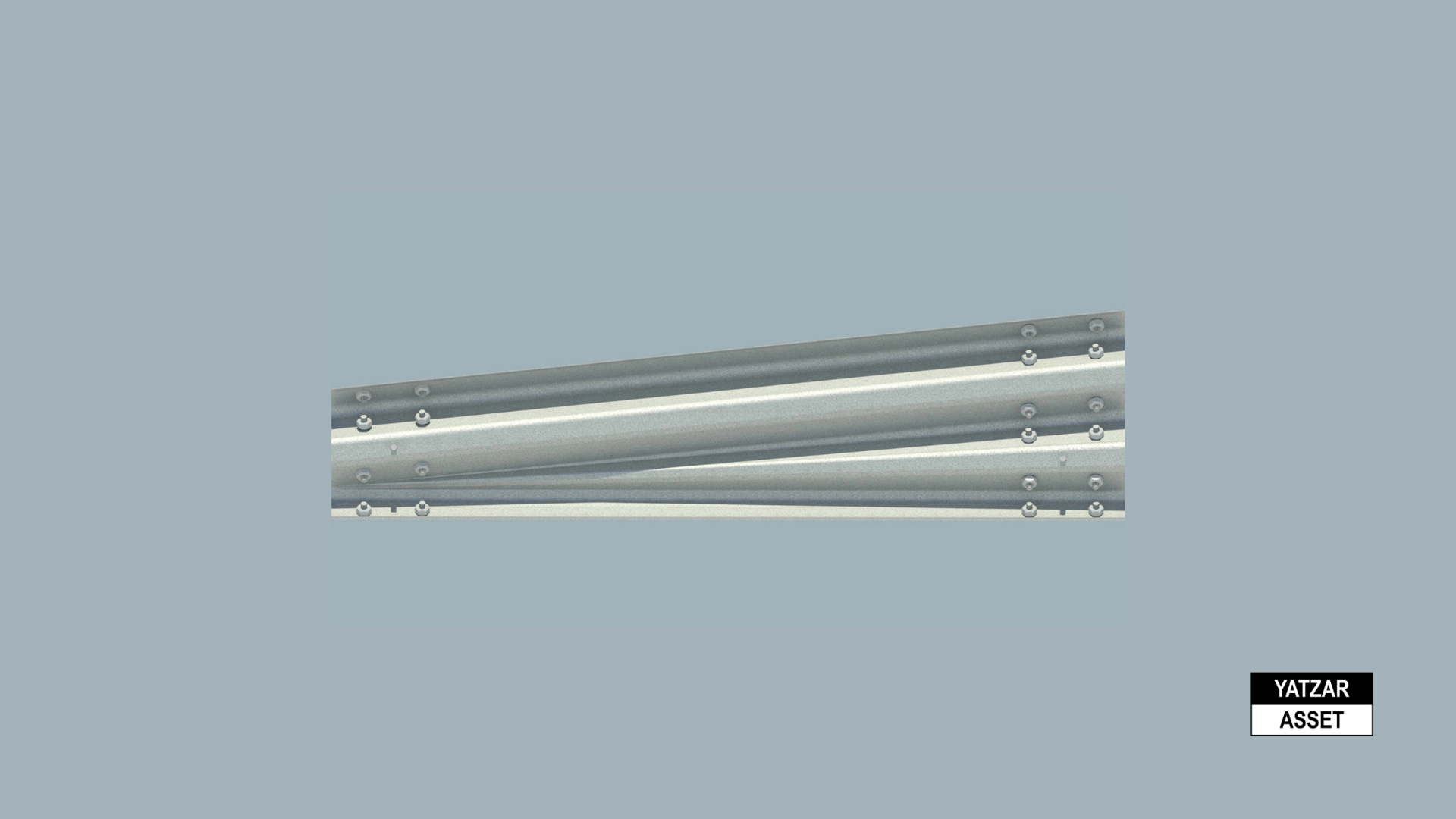

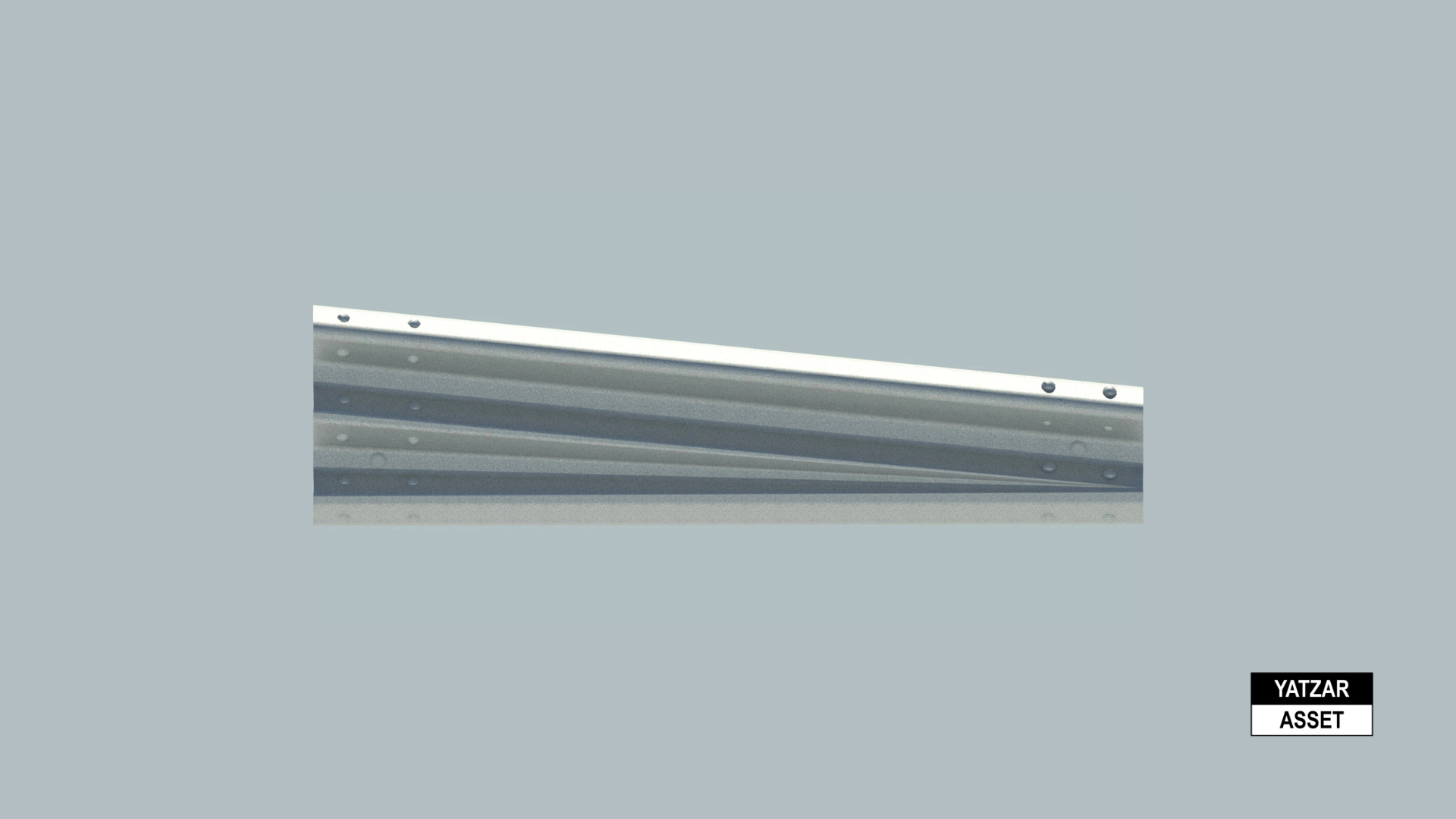

The Asymmetric Transition 1905mm RHS provides a smooth connection from Thrie-Beam to W-Beam guardrails on the right-hand side. It ensures a safe, continuous barrier with effective impact performance.
Total file size:
5.69 MB |
Number of files:1
The asset includes a Revit 2025 parametric family of the Asymmetric Transition 1905mm RHS. It is structured with type and instance parameters such as transition length, orientation, material, and identity data for accurate scheduling and coordination.
The asset includes a Revit 2025 parametric family of the Asymmetric Transition 1905mm RHS. It is structured with type and instance parameters such as transition length, orientation, material, and identity data for accurate scheduling and coordination.
The Asymmetric Transition 1905mm RHS is designed to create a safe and continuous link between Thrie-Beam and W-Beam guardrails on the right-hand side. Its asymmetric profile maintains barrier performance while allowing flexibility in roadside applications. Constructed from galvanised steel, it ensures strength, resilience, and ease of installation. The digital model is provided as a Revit 2025 parametric family, including geometry, material, and identity parameters to support accurate representation and integration into BIM environments.
