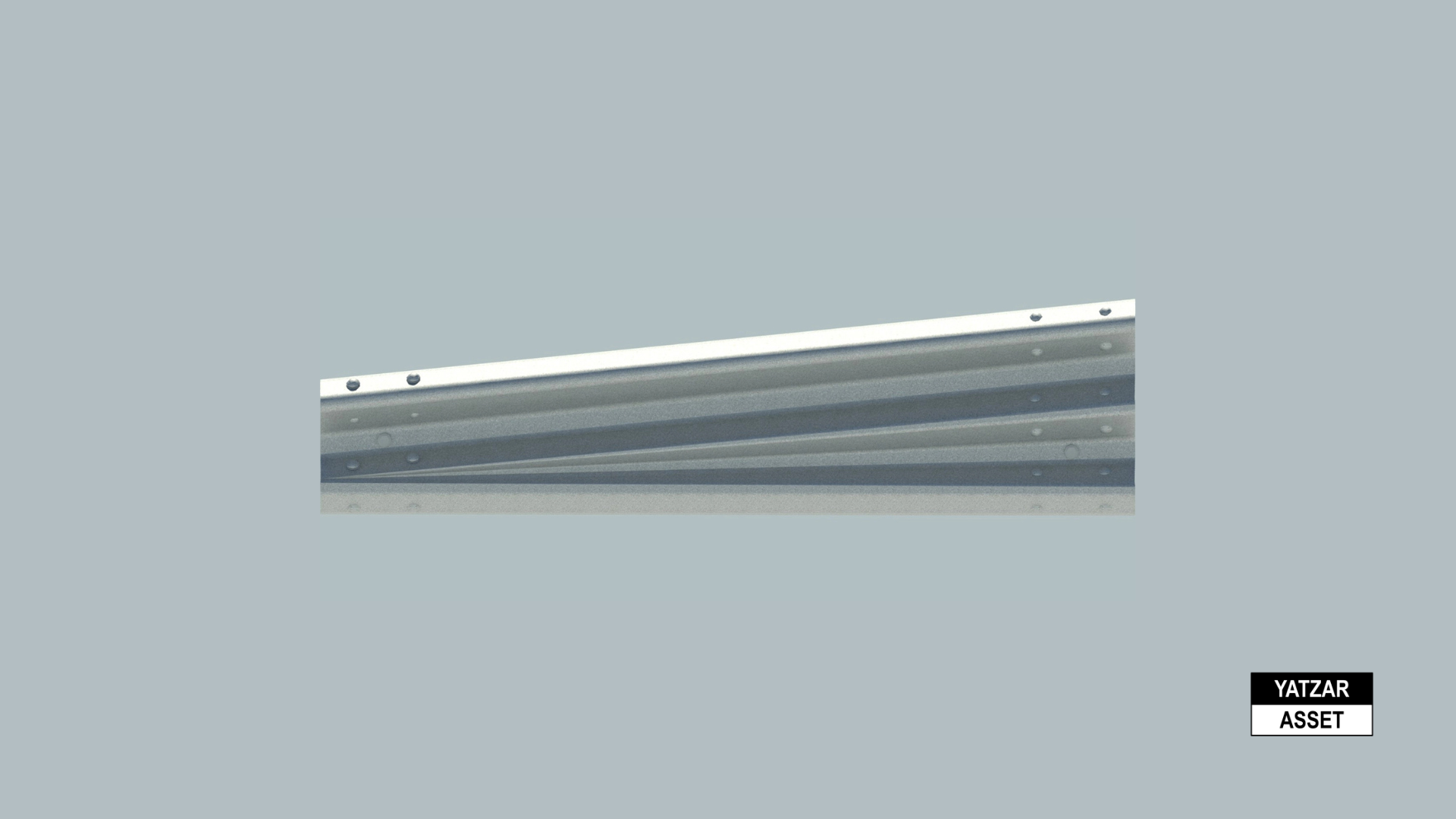

Asymmetric Transition 1905mm LHS W-Beam to Thrie-Beam
The Asymmetric Transition 1905mm LHS enables a smooth connection from W-Beam to Thrie-Beam guardrails on the left-hand side. It provides a continuous safety barrier, improving vehicle containment and roadside protection.
Total file size:
7.72 MB |
Number of files:1
The asset includes a Revit 2025 parametric family of the Asymmetric Transition 1905mm LHS. Parameters such as transition length, side orientation, material, and identity data allow accurate representation and scheduling.
The asset includes a Revit 2025 parametric family of the Asymmetric Transition 1905mm LHS. Parameters such as transition length, side orientation, material, and identity data allow accurate representation and scheduling.
The Asymmetric Transition 1905mm LHS is engineered to connect W-Beam and Thrie-Beam guardrails seamlessly on the left-hand side of a roadway. Its offset design ensures safe continuity of the barrier system and effective redirection of vehicles. Fabricated from galvanised steel, it offers long-term durability and straightforward installation. The asset is delivered as a Revit 2025 parametric family, built with defined geometry, material, and orientation parameters, ensuring consistent use and reliable integration within BIM workflows.
