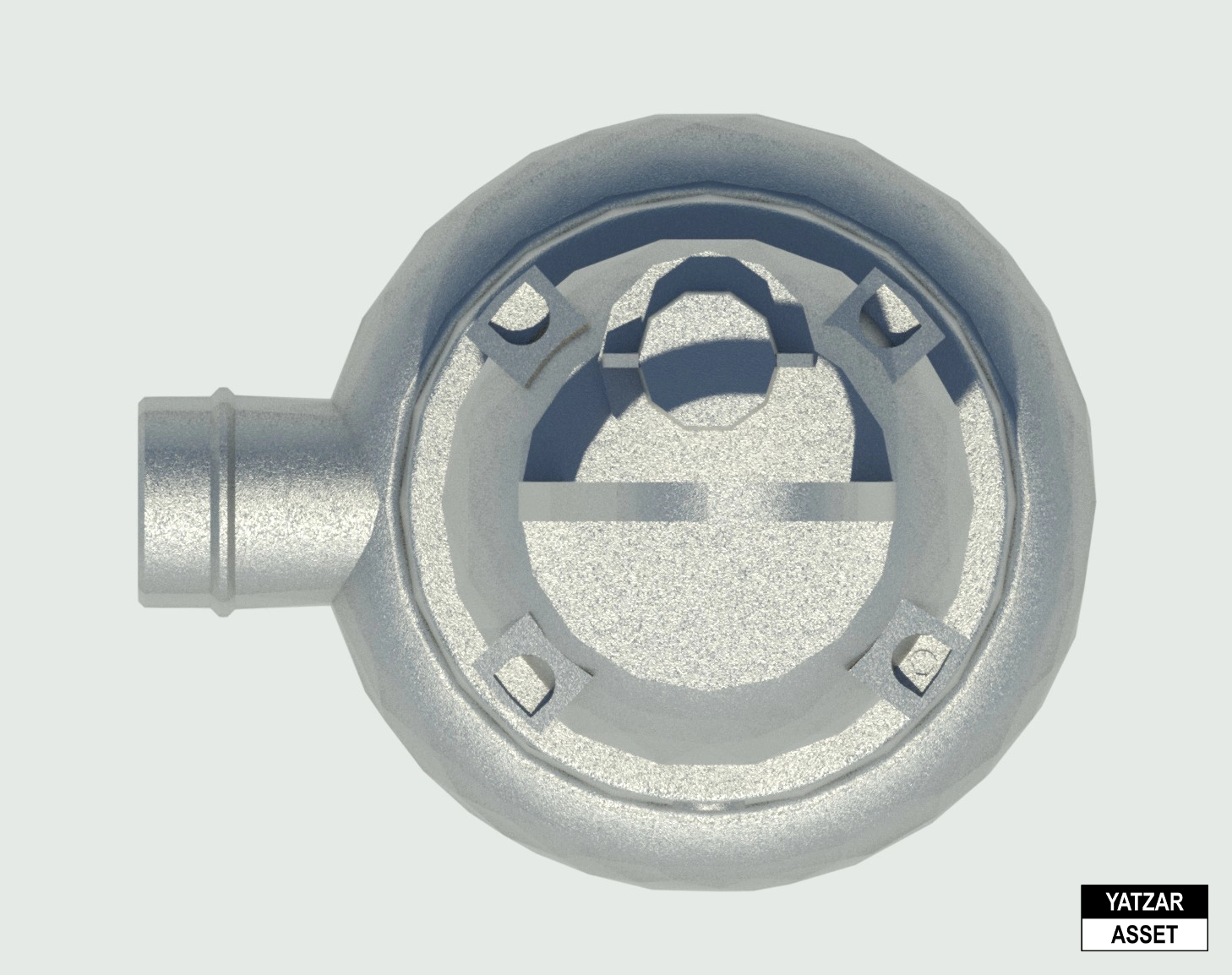

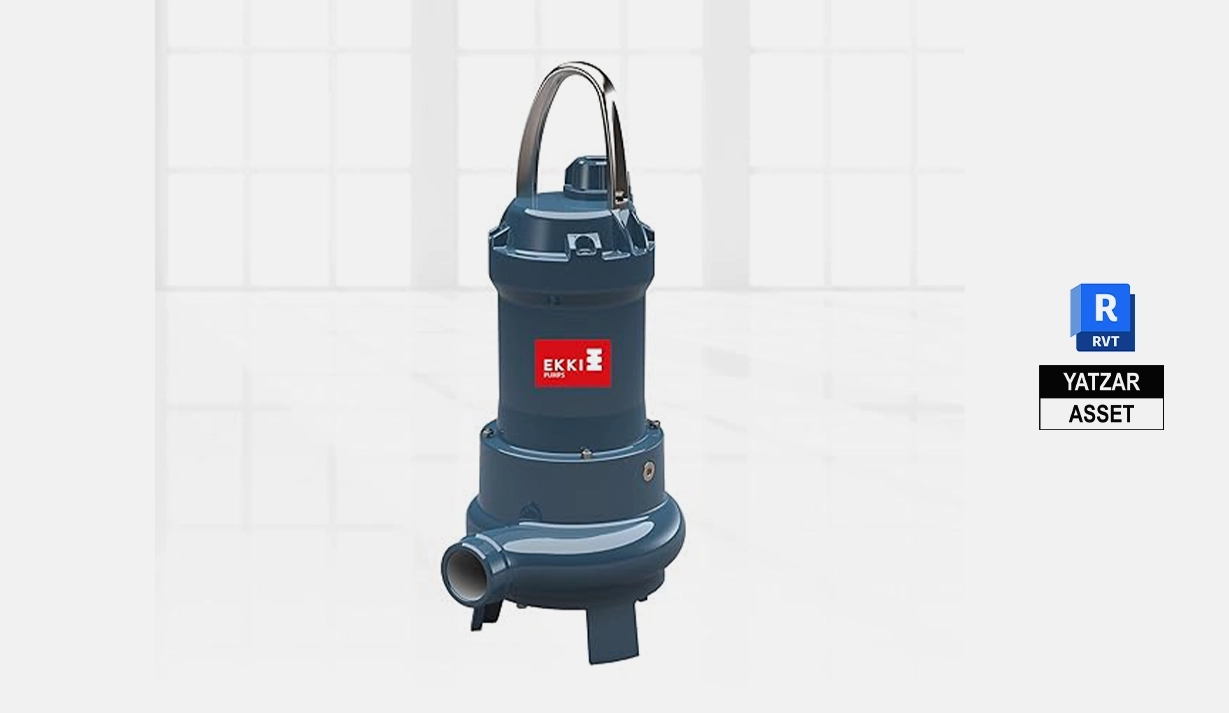

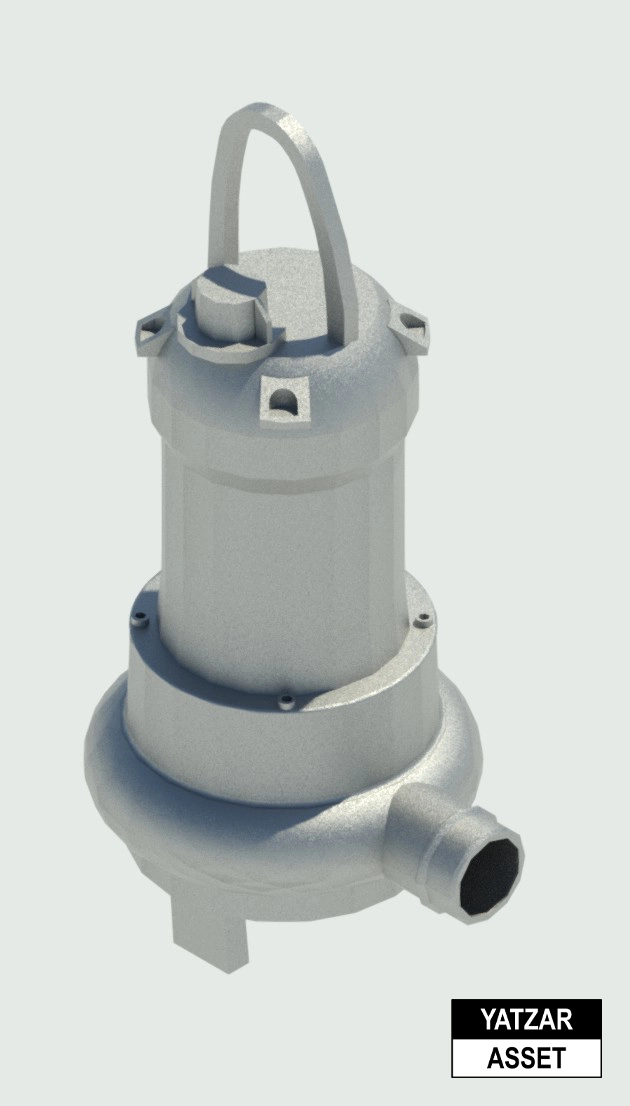

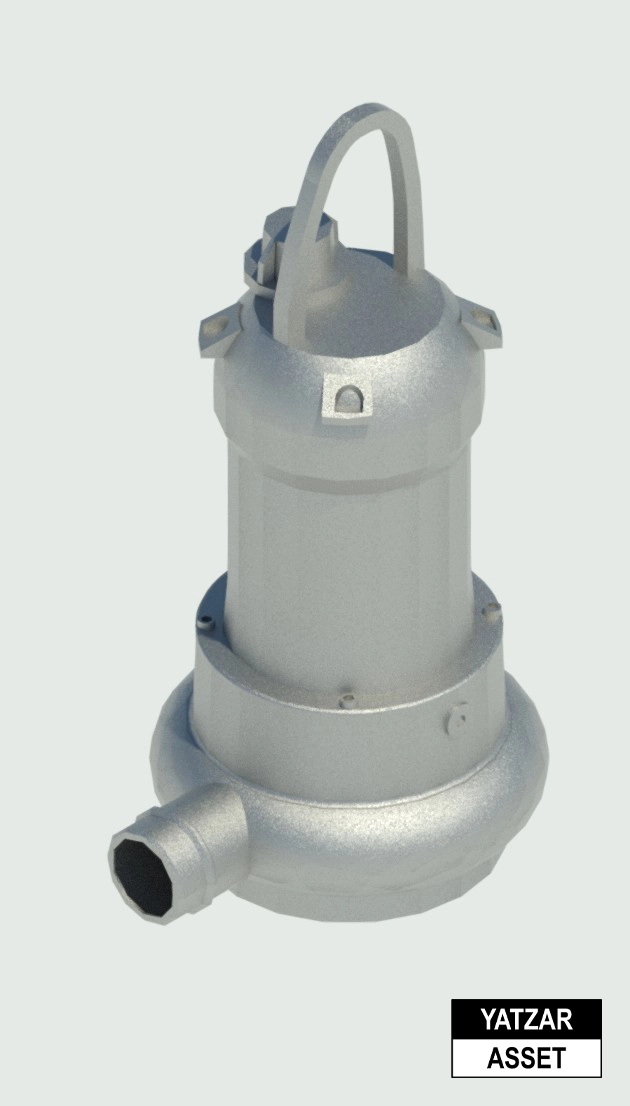

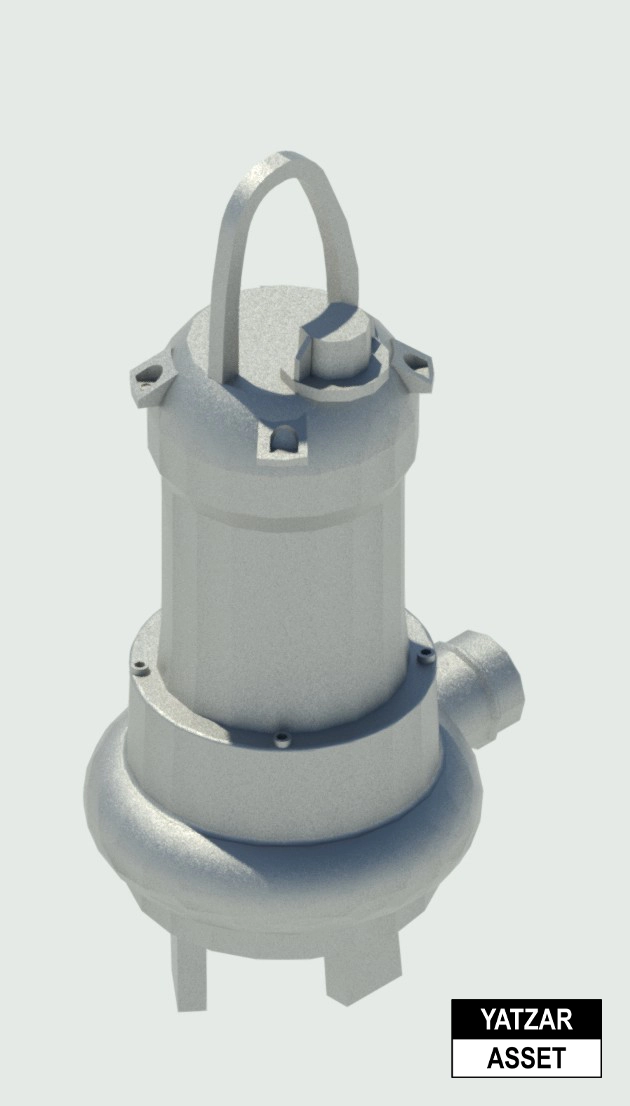

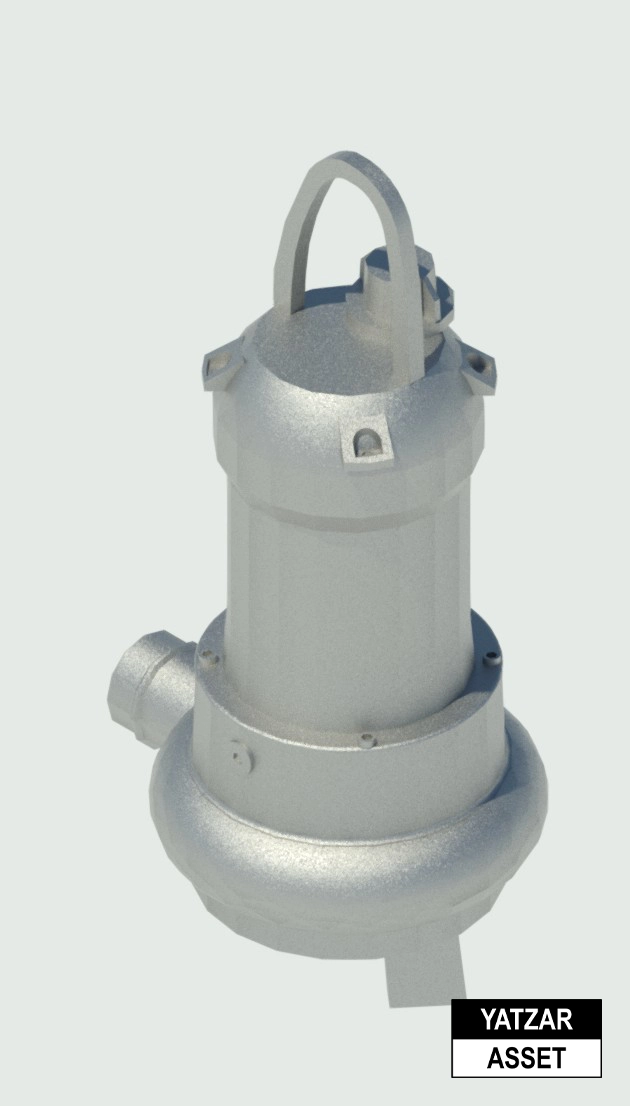

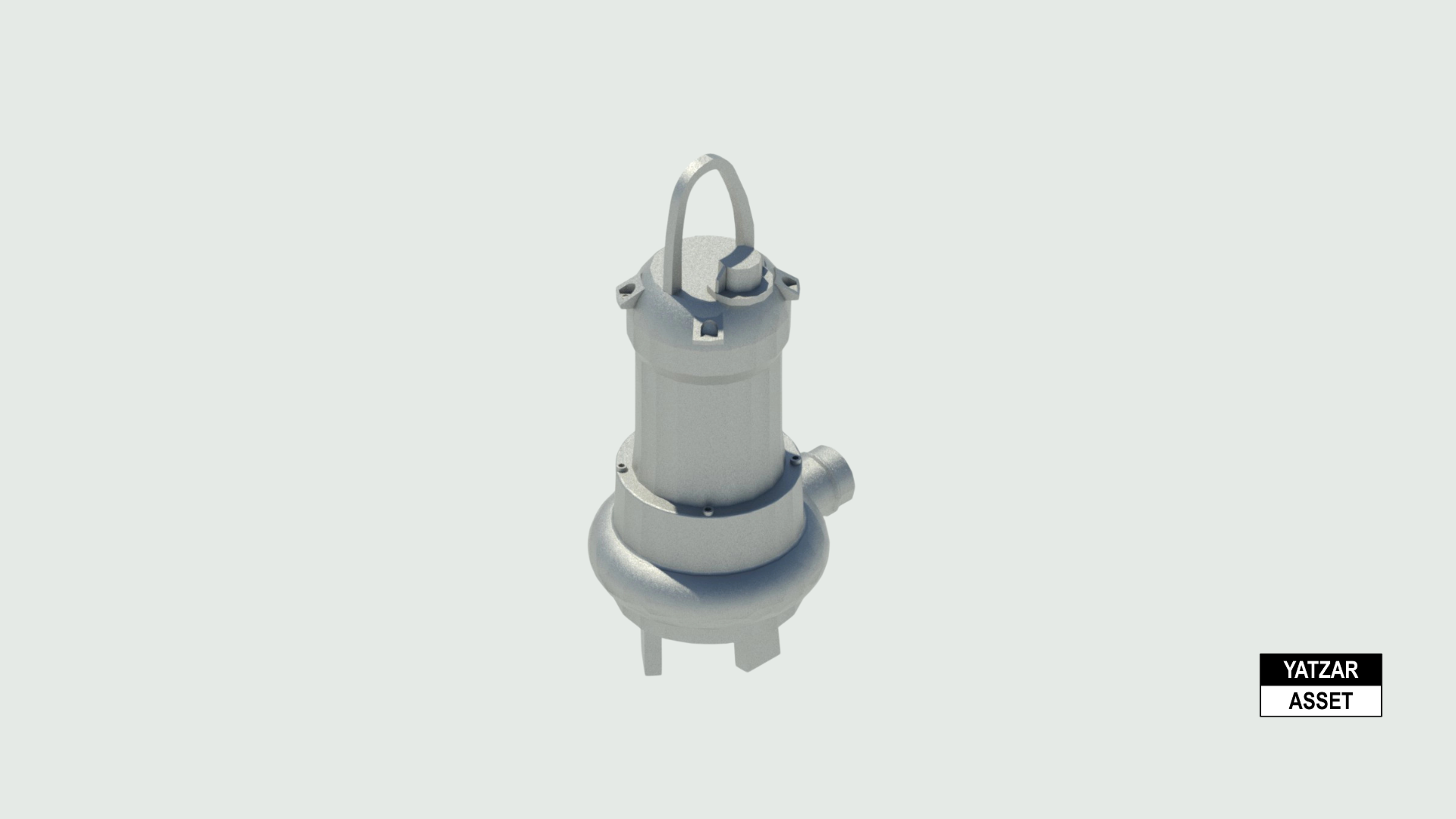

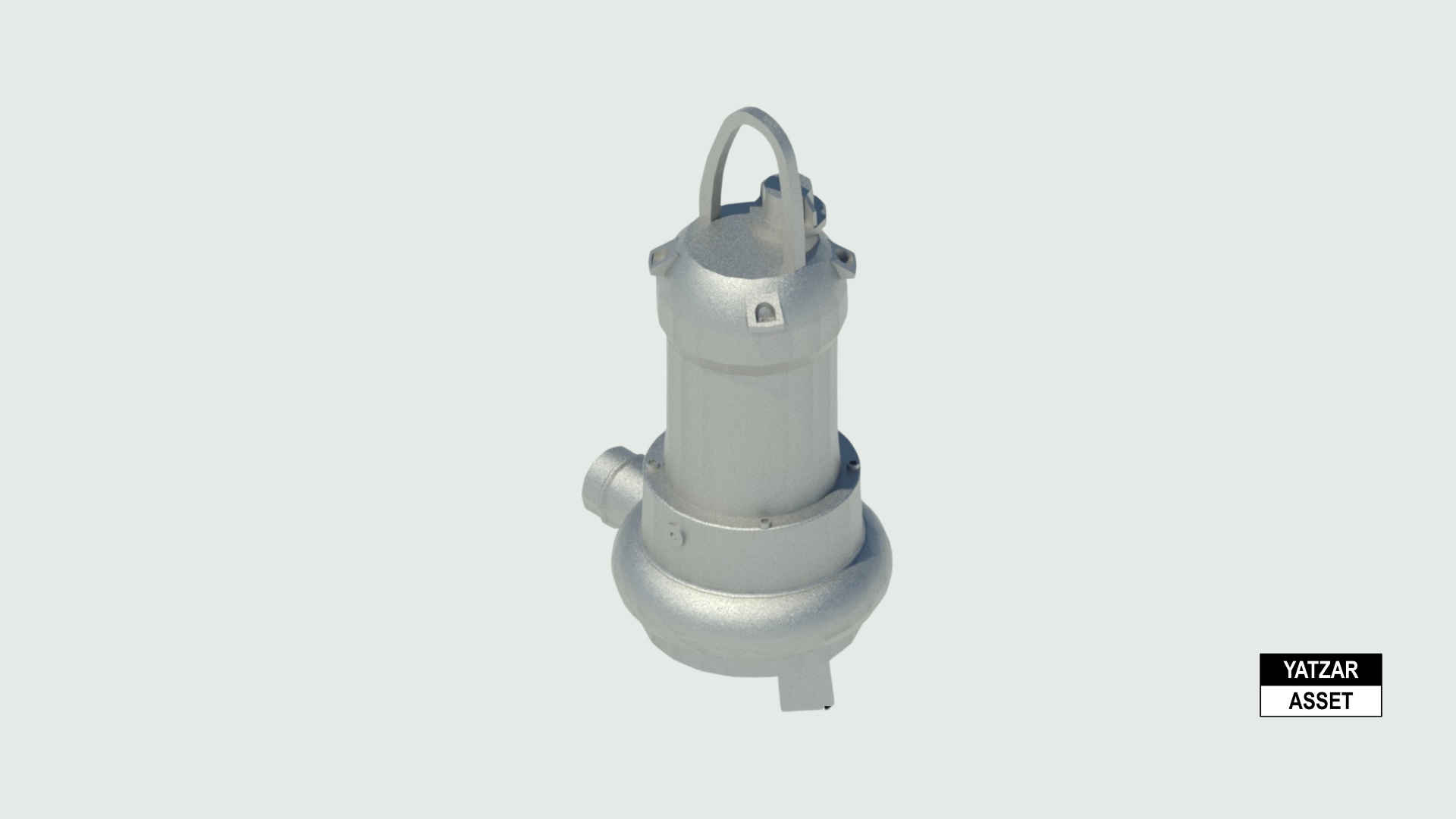

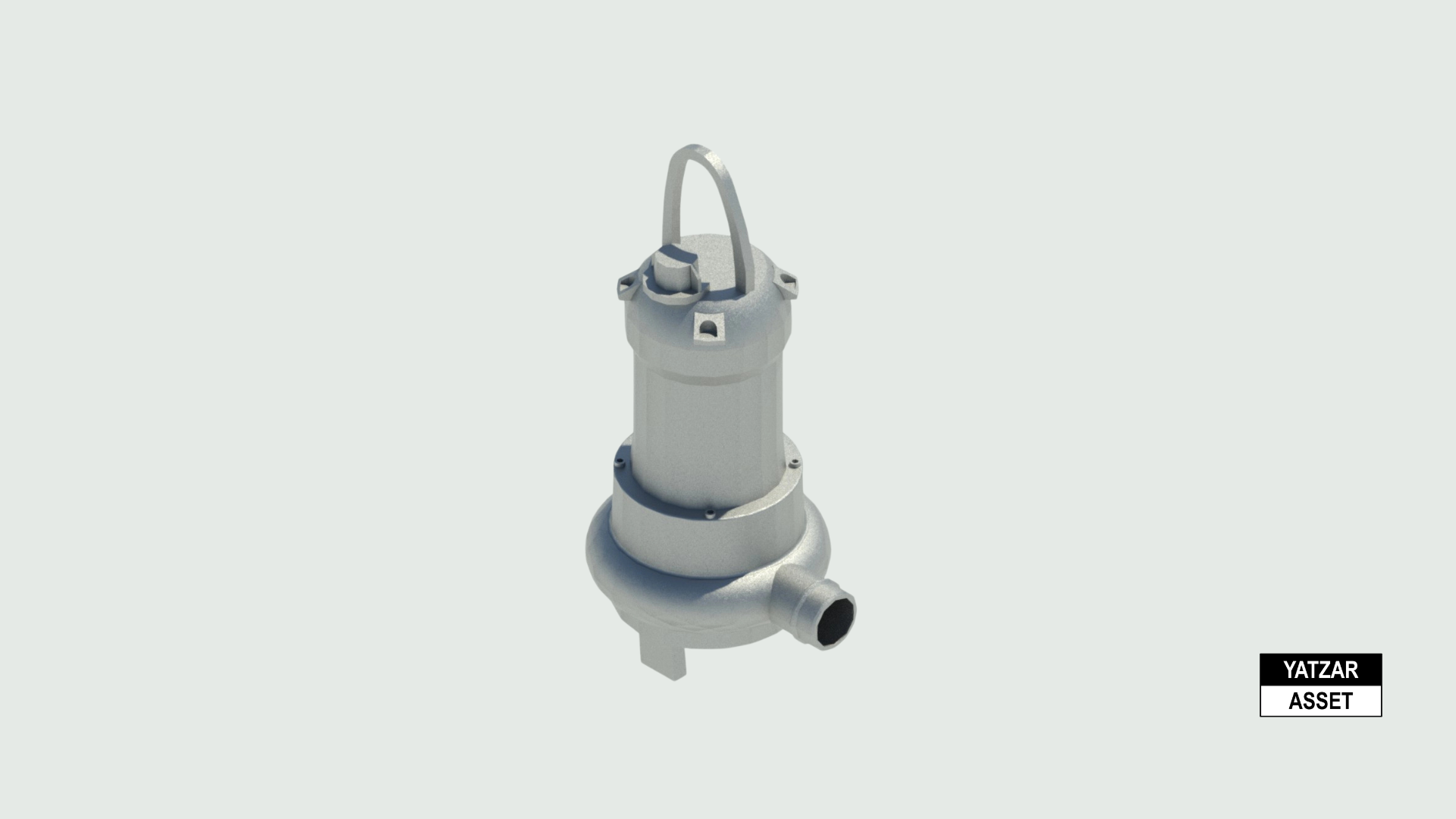

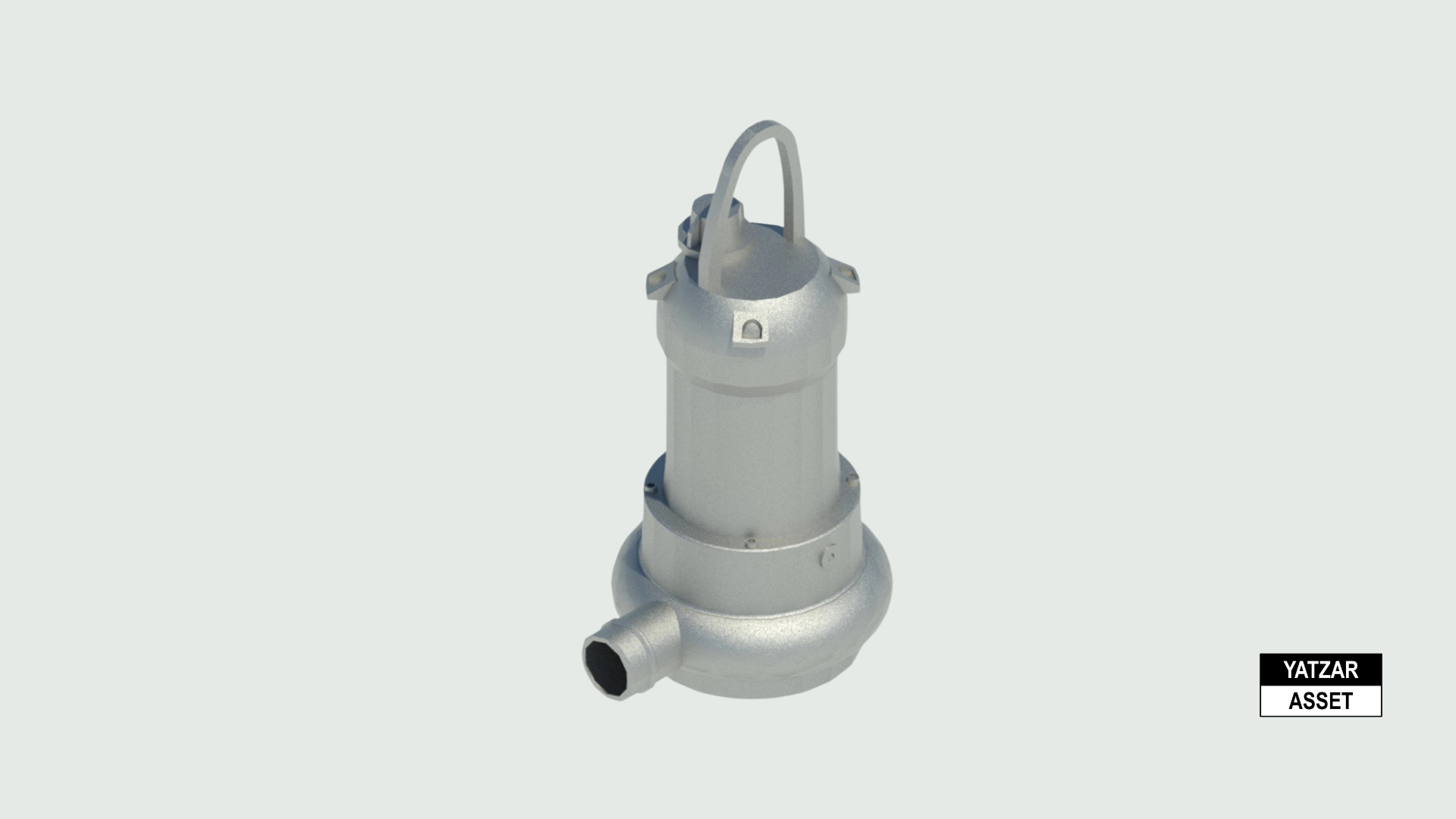

The Linus ED 28 Series is a compact submersible sewage pump designed for efficient handling of wastewater containing solids up to 28 mm. It features a robust construction with high-quality materials, reliable sealing systems, and options for automatic operation using a float switch, ensuring durability and consistent performance in demanding conditions
Total file size:
3.57 MB |
Number of files:3

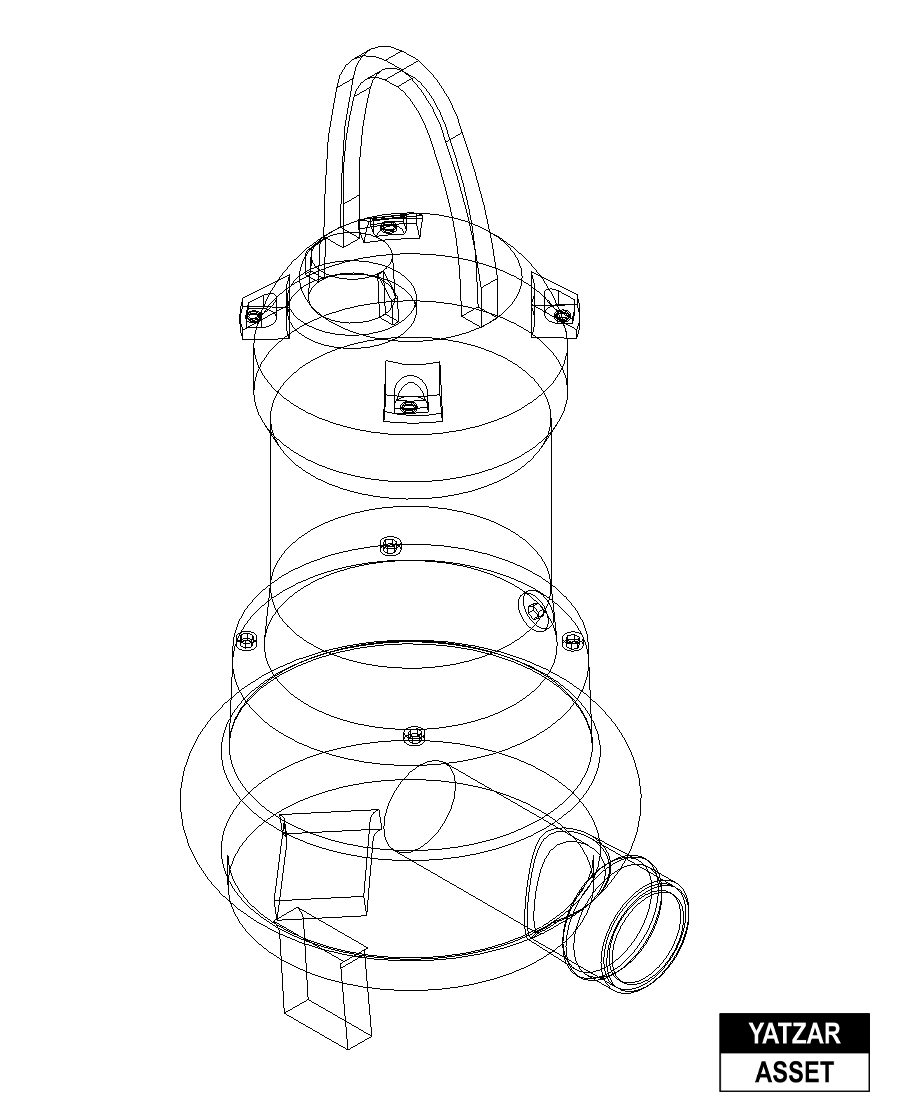

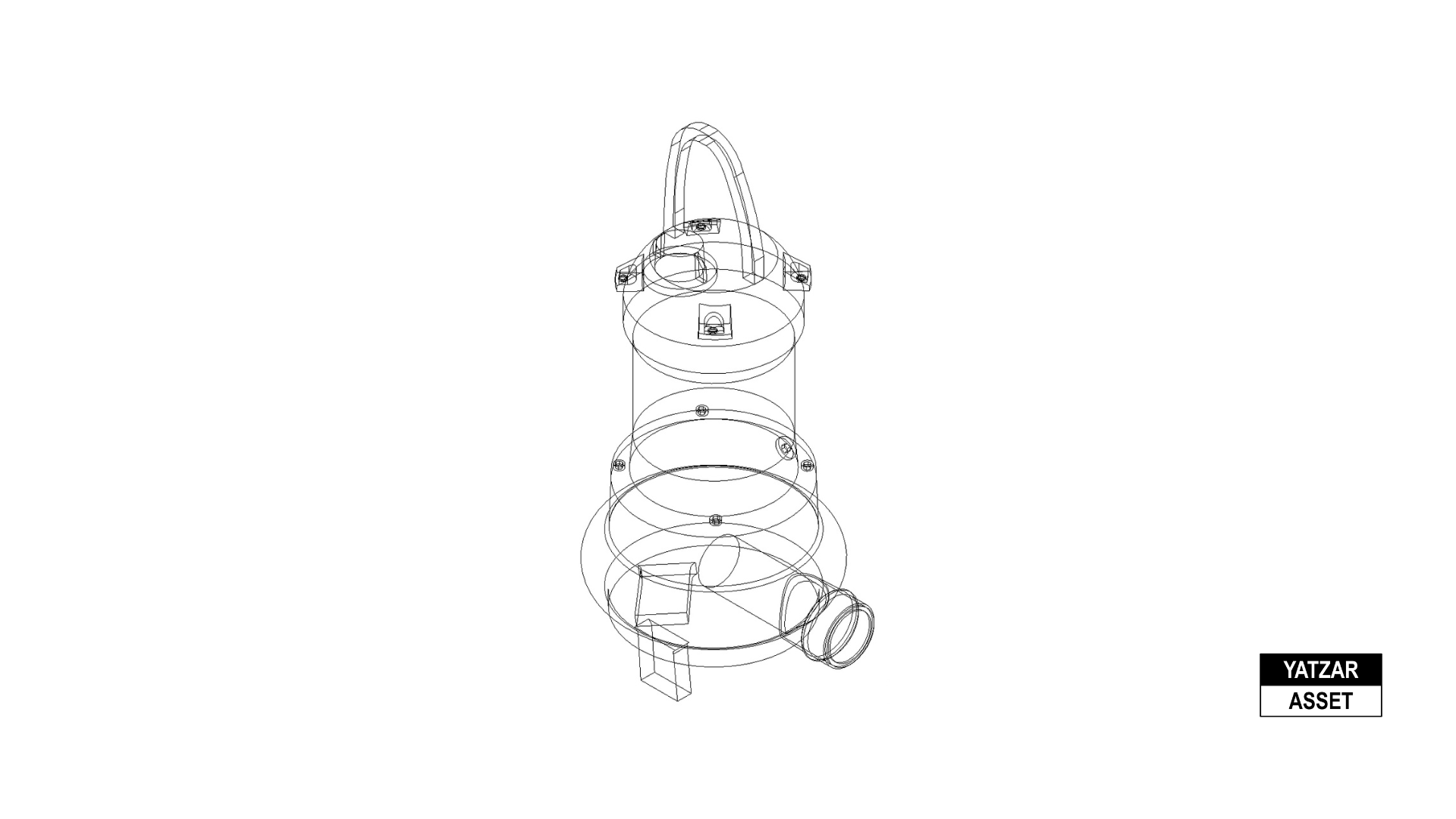

This Revit family is a single-stage centrifugal unit with a 40 mm outlet and is available in 1.0 to 1.5 HP configurations, supporting both single-phase and three-phase power supply. It is equipped with open channel or vortex impellers for handling impurities, fibers, and sludge. The motor includes thermal protection, IP68 rating, and operates within standard 50 Hz frequency, while the construction uses cast iron housing, stainless steel shaft, and mechanical seal combinations for long service life
This Revit family is a single-stage centrifugal unit with a 40 mm outlet and is available in 1.0 to 1.5 HP configurations, supporting both single-phase and three-phase power supply. It is equipped with open channel or vortex impellers for handling impurities, fibers, and sludge. The motor includes thermal protection, IP68 rating, and operates within standard 50 Hz frequency, while the construction uses cast iron housing, stainless steel shaft, and mechanical seal combinations for long service life
The Linus ED 28 Series sewage pump is designed for applications such as septic tanks, sump drainage, basement water removal, and STP/ETP systems. Its ability to handle wastewater with fine solids and short fibers makes it suitable for residential, commercial, and light industrial use. With a fully submersible design, durable components, and reliable sealing, the pump ensures efficient and trouble-free wastewater management across various environments.
Download Technical Specification
